Circle in AutoCAD

                                      Circle

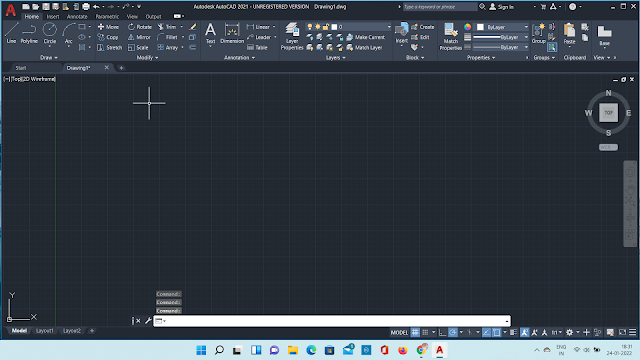

 * You can see the symbol of the circle in the right side ( in the 3rd number).



 OR you can write the C in the type command ( type command is - c), then press enter ( ↵ ).



*  whenever you are open the circle command to the right side, you can see the down arrow to the bottom of the circle, then click on it, you can see there are 6 options, with the help of  you can make circles.



OR whenever you are open the circle command by C in type a command, then you can see there are only 3 options, with the help of you can make circles.


* Now, we are discussing are all the options to make circles -
 1)  Centre, Radius -  If you know the center and radius of the circle so, we can use centre, radius command.


       * specify center point for the circle ( you can see this in the type command after in circle command ).
       Click on the center, radius option then you are entered in the circle command of center, Radius.



       Click on the screen where do you make the center of the circle.


then he is asking the specify the radius of the circle so you will write  a radius of the circle in the type command ( for example we are taking the radius 4mm ).


then press enter, you can see the circle of 4 mm radius.


   2)  Centre, diameter -  If you know the center and diameter of the circle so, we can use center,  diameter command.


this command same as a center, radius but the difference is that we will the take the diameter of the circle in the place of radius.

3)  2-Point -  if you know 2 points and you want to draw a circle with under points then you can use this command.  (also you see this command in the type command whenever you entered the c-command ).



so first you will draw two line  by using line command
